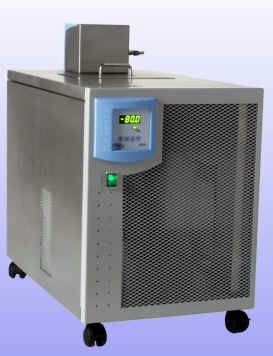

Model TLC80-11

  The TLC80-11 is a low temperature circulator with a bath contents of 11 litres. The minimum temperature which can be reached is minus 80C. At this low temperature the heat removal capacity lies around 50 watts. The drain located at the back provides easy removal of the bath fluid. Low fluid level is detected electronically

Cooling medium
The used cooling system is ozone friendly, so it doesn't contain any CFK/HCFK gas.

Control mechanism
With the compressor continuously running, the fluid temperature is regulated via an electronic controlled heater.

The working temperature range is : -80 to ambient (-112F .. ambient)

The setpoint is adjustable in steps of 0,1C. The overall system stability is better than 0,05K as can bee seen in the graph.

Temperature readout
Standard available in C, on request in F.

A pressure pump provides circulation in the bath or via an external circuit. The pressure of the pump is 300 mBar at 7 ltrs per minute.

The bath conforms CE regulation. It is further equiped with a mechanical adjustable and resettable safety thermostat.
Optional equipment Available in 230 or 115Volt

Technical specifications
Power Watt 2000 max
Used Materials Stainless steel Chrome plated coil
Range [] -80C..ambient/-112F..ambient
Reading [] C (F on request)
Setting [] 0,1
Stability [K] >0,05C
Heating [W] 1100
Bath volume [L] 11
Pump pressure [mm H2O] 300 (max)
Pump cap. [L/min] 7 (max)
Compressor [W] 2x400
Heat removal [W] '@-65C 200
@-78C 150
@-80C 50
Opening bath [mm] 290x200
Length [mm] 700
Width [mm] 450
Hight [mm] 750/700(no wheels)
Weight [Kg] 80
CE Conforms to CE regulation
