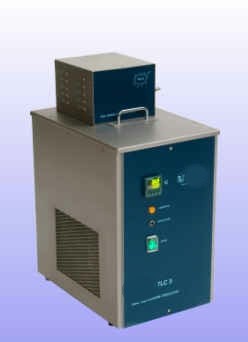

Model TLC3

  This type of cooling circulator is mostly used for replacing tapwater used for cooling purposes in laboratory equipment or processes. The bath contence is 3.5 litres.

Cooling medium
The used cooling system is ozone friendly, so it doesn't contain any CFK/HCFK gas.

Control mechanism
With the compressor running continuously, the fluid temperature is regulated through a electronic controlled heater.

The working temperature range is :
-20 to +100�C / -4..212�F

The setpoint can be set in steps of 0,1�. The overall system accuracy is �0,1�K

Temperature readout
Standard available in �C, on request in �F.

A pressure pump provides circulation in the bath or via an external circuit. The pressure of the pump is 300 mBar at 7,5 ltrs per minute.

The bath conforms CE regulation. It is further equiped with a mechanical adjustable and resettable safety thermostat.

Optional equipment
  • Remote control via RS232
  • Suction/pressure Z pump, for circulation of bath-fluid through open vessels. Not suited for foaming fluids
  • Two way slide valve in combination with the Z pump. Permits circulation via open or closed systems
  • Available in 230 or 115Volt
  • Technical specifications:
    Model TLC3
    Range -20�C..100�C (-4�F..212�F)
    Reading Standard �C, �F on request
    Used materials inside bath Stainless Steel 304, PTFE
    Setting � [�K] 0,1
    Stability* � [�K] Better than 0,1
    Heating [W] 780
    Heaters 1
    Bath volume [L] 3,5
    Pump pressure [mm H2O] 300
    Pump cap. L/min 7,5
    Compressor Hp 1/6
    Heat removal [W] @20�C : 260
    [W] @0�C : 130
    [W] @-10�C : 65
    Opening [mm] 130*32
    Depht [mm] 217
    Length [mm] 260
    Width [mm] 360 x Hight [mm] 600 x Weight [Kg] 35
    Power [W] 1750
    CE All models conform CE regulation
