AUTOMATIC PENETROMETER ASTM D5, D217, D937, D1321, D1403, NFT 60119, T 60132, T 66004, ISO 2131, ISO 2137, DIN 52010, DIN 51804, DIN 51579, IP 49

AUTOMATIC PENETROMETER

ASTM D 5 - ISO EN 1426 - IP 49 - DIN 52010 & D 217 - ISO 2137 - IP 50 - DIN 51580 & D 937 - IP 179 - DIN 51579 & D 1321 - ISO 3992 - DIN 51579 & D 1403- ISO 6298 - IP 310.

MAIN CHARACTERISTICS
  • Built-in user friendly software
  • Full auto approach on conductive products & hard bitumen (in option)
  • 4 programmable reference positions for cone holder assembly
  • Stepper motor for penetration depth as low as 0.01 mm
  • Programmable Penetration time between 0 and 999 min
  • Temperature measurement: -10 to 150C
  • Range : 0 to 75 mm
  • Results : in 1/10mm on full range
  • Range : 0 to 75 mm
  • Displayed resolution: in 1/100 mm
  • Position recall for routine tests can be set
  • Optoelectronic detection of depth penetration
  • Optional automatic level detection for bitumen
  • Three last tests displayed with calculated average
  • Connection: 2 USB ports 1 for printer or keyboard and 1 for PC
  • Adjustable led lamp and magnifying glass
  • SCOPE OF DELIVERY

    Holder for accessories, magnifying lens and low voltage illuminator, centering guide with screw and nut, power cord, set of 2 fuses, RS232C output, accessories for automatic level detection for conductive samples comprising probe cable, mini grip & test probe and instruction manual.

    ADDITIONAL ACCESSORIES AND OPTIONS

    REF 9417341 Light bulb for ref. 941734
    REF 9417342 Flexible light for ref.941734
    REF 9417343 Magnifying glass for ref. 941734
    REF 4873465 CD-rom with PC application + USB cable - for NPN TECH
    REF 0195200004 Transfer bath, made of stainless steel with coil To be connected to a water bath
    REF 0195200005 Transfer bath support made of stainless steel
    REF 22246 Cryostat -30…+150°C : 0,03°C, with depth of 200mm
    REF 941732 Calibration kit for automatic penetrometer
    REF 9417371 Bitumen automatic level detection device
    REF 11504 ASTM thermometer (17 C), + 19 to 27°C
    REF 11532 ASTM thermometer (63 C), - 8to + 32°C
    REF 11533 ASTM thermometer (64 C), +25 to + 65°C

    ACCESSORIES AND CONSUMABLES for Bitumen (ASTM D5)
    REF 518063 Standard needle 2.5 g (up to 350 units)
    REF 941737 Needle holder 47.5 g (1 supplier with main equipment)
    REF 941810 Outfit for penetration of bituminous material, comprising: needle, holder, 50 g weight and 2 containers
    REF 941812 Additional weight 100 g
    REF 941815 Additional weight 50 g
    REF 9418140 Long needle 2.5 g (up to 500 units)
    REF 21712 Pack of 300 Sample containers only one use, 55x35 mm
    REF 518066 Aluminium container, 55 X 35 mm,
    REF 9418181 Aluminium container, 55x70 mm (>200 units)
    REF 9418191 Aluminium container, 55x57 mm (up to 500 units)
    REF 21932 Standard needle 2.5 g (up to 350 units) with UKAS Certificate

    ACCESSORIES (for lubricating greases - ASTM D 217)
    REF 941739 Grease cutter with blade
    REF 941736 Outfit for consistency of lubricating grease comprising : 1 cone 102.5 g, 1
    holder and 1 container 76x63 mm
    REF 941737 Cone holder , nickel-plated brass, movable, 47.5 g
    REF 941738 Standard cone 102.5 g
    REF 9417411 Sample container, 76x63 mm
    REF 27322 Spatula 30x200 mm

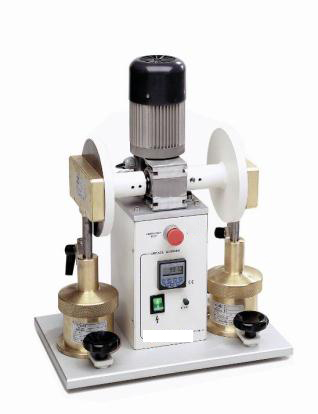

    REF 9417582 GWM CLASSIC- Compact twin-unit automatic grease worker - using electronic counter to control the strokes number. Delivered in standard with 2 plunger plates 51 holes + 2 covers + 2 Shaft and Handle + 2 Vent Cocks.
    For use on AC 400 V, three-phase, 50 Hz, 16 A, 400x260x500 mm (±29 kg)

    ACCESSORIES (for consistency of petroleum - ASTM D 937)
    REF 941735 Outfit for consistency of petroleum, comprising : cone, container and holder
    REF 941737 Cone holder , nickel-plated brass, movable, 47.5 g
    REF 941738 Standard cone 102.5 g
    REF 9417412 Sample container 100 x 65 mm with cover
    REF 518063 Standard needle 2.5 g (up to 350 units)
    REF 518081 Needle with shoulder 2.5 g, stainless steel

    ACCESSORIES (for consistency of petroleum waxes - ASTM D 1321)
    REF 941811 Outfit for consistency of petroleum waxes comprising : shouldered needle,
    container, weight &
    REF 941816 Needle with shoulder 2.5 g, stainless steel
    REF 941737 Cone holder, nickel-plated brass, movable, 47.5 g holder
    REF 941815 Additional weight 50 g
    REF 941820 Sample container with base plate
    REF 21932 Needle 2,5g with certificate

    ACCESSORIES (Penetration tests using one-quarter or one-half
    scale cone equipment - ASTM D 1403)
    REF 941742 1/4 scale cone (9.38 g)
    REF 941743 1/2 scale cone (37.5 g)
    REF 27322 Spatula 30 x 200 mm
    REF 9417421 1/4 scale grease worker (manual operation)
    REF 9417431 1/2 scale grease worker (manual operation)

    ORDERING INFORMATION
    REF 942734
    NPN TECH For use on AC 230 V, 50 Hz - 1 A
    (W) 260x (D) 320x(H) 540 mm (± 23 kg)
