SPECIFICATION

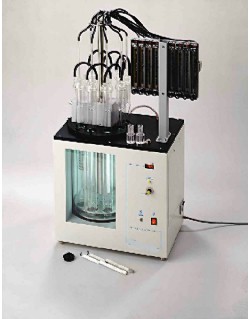

Exclusive turntable bringing each sample tube in front of operator for easy checking without disturbance of the other tubes and without being forced to remove it from the bath.
Air or oxygen supply to each cell is measured and adjusted by easy readable set of eight accurate individual flowmeters.
Flowmeter choice is flexible: From one to eight for air or oxygen with every combination of both or, an optical second easy exchangeable supporting panel with eight flowmeters of the other type. A set of eight large scale, accurate flowmeters is to order separately with instrument. Please precise quantities and types.
Interior of the bath may be illuminated and the front viewing window is covered with removable magnetic, metallic opaque panel for short runs in total darkness.
8-place liquid bath for determination of oxidation stability test including glazing wall bath with cover, regulator and digital temperature display, without 8-flowmeter ramp to be fitted on the tester, nor glassware sets, ASTM 40C thermometer
REF. 9416240
Steam-Turbine Oils oxidation test apparatus, 8 units, with digital temperature
display, opaque magnetic screen, one bath thermometer and one set
of flowmeters (3 l/h air) included for ASTM D 943.
REF. 9416250
Middle distillate petroleum fuel oxidation test apparatus, 8 units, with digital
temperature display, opaque magnetic screen, one bath thermometer and
one set of flowmeters (3 l/h oxygen) included for ASTM D 2274.
REF. 9416260
Oxidation Test apparatus, 8 units, with digital temperature display, opaque
magnetic screen, one bath thermometer.
This apparatus is delivered whithout flowmeter.
NECESSARY ACCESSORIES
9416241 Complete set of 8 glassware
9416242 Accessories catalyst, syringe, mandrel,...
OPTIONAL ACCESSORIES
516597 Reel of copper w ire catalyst (20 kg)
516596 Reel of iron w ire catalyst (1 kg)
941628 Winding f ixture for w ire catalyst
996232 Syringe w ith sampling tube
9416231 Thermometer bracket
9416233 Sampling tube holder
9416251 Flow meter for 3 l/h air (D943)
9416252 Flow meter for 3 l/h oxygen (D2274)
9416253 Flow meter for 10 l/h air (D2893)
9411302 Borosilicate glass jar(300 x 450 mm)
SPARE PARTS (2 years basis)
21011 Catalyst iron-copper coil (ready to use)
9416248 Mushroom condenser
9416249 Oxygen delivery tube
9911522 ASTM thermometer 40C
9417905 Pt 100 probe (250x5 mm)
9416239 Heating element (1000 W)
9416247 Test container
