PORTABLE OCTANE METER ASTM D2699 - ASTM D2700 - ISO 5163 - ISO 5164 - EN 25163 - EN 25164

PORTABLE OCTANE ANALYZER

ASTM D2699 - ASTM D2700 - ISO 5163 - ISO 5164 - EN 25163 - EN 25164

Features

  • Lab accurate
  • Results in less than 20 seconds
  • Built-in printer and LCD display
  • Needs only 8 ounces of gasoline
  • Test sample not damaged in any way
  • Results traceable to official knock engine laboratory
  • Battery or A/C operated
  • Includes RS-232 output
  • Measures all grades of unleaded gasoline
  • Directly measures pump octane: i.e. [(R+M)/2], RON and MON
  • Unmatched reliability... totally solid state
  • Simple to use
  • Patented proven technology
  • Comes with briefcase-size carrying case

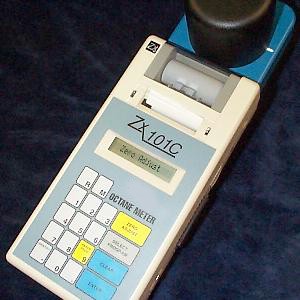

  • ZX101C Near Infra-Red Octane & Cetane Analyser achieves easily a quick, yet highly accurate (+/- 0.1) determination of Research Octane Number (RON), Motor Octane Number (MON), Cetane Index (CI) and Cetane Number (CN), in the range 0 to 110.

    The tester can be calibrated for ten fuels or substrates and measures all grades of unleaded gasoline. The test does not require advanced training and can be completed in less than 20 seconds (vs. at least 45 minutes in a knock engine).

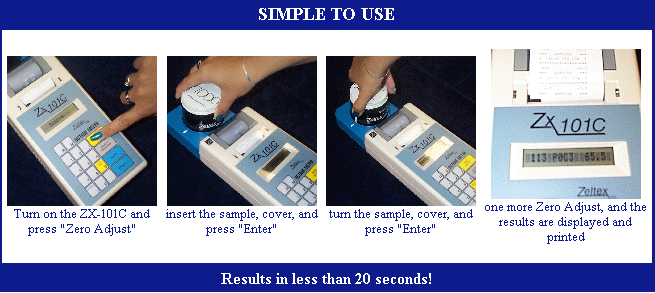

    To perform a test, just pour 200 ml of gasoline or diesel in the supplied sample container (75 mm optical path length) and place it in the instrument. The sample is not damaged in any way and can be either used for retest or for other purposes.

    PORTABLE OCTANE METER ASTM D2699 - ASTM D2700 - ISO 5163 - ISO 5164 - EN 25163 - EN 25164

    A number of controlled field trials, comparative tests and commercial experience confirm that the ZX101C is providing a safe indication of the octane rating of unleaded motor fuels and of the cetane rating of all diesels. Both repeatability and reproducibility are slightly better than those for the well established WAUKESHA Knock CFR Research and Motor Engine as forecasted by the Research ASTM D2699 and Motor ASTM D2700 Methods. Results are traceable to official knock engine laboratory.

    In unleaded gasoline, the light is absorbed at specific known wavelengths. The new instrument utilise the transmittance measurement by Near Infra Red (NIR) Spectroscopy. The NIR portion of the spectrum is where the wavelengths of light are slightly longer than can be seen by the human eye.

    The ZX101 patented solid state optical system uses 14 fixed narrow band-pass filters mounted in front of NIR emitting diodes from 893 to 1045 nm, a silicon detector system with a scan speed of 10 scans/sec. and a fully integrated microprocessor to allow a spectrum of NIR energy to be derived without any moving parts, lightbulbs, or other failure prone devices.

    He background signal is sampled both before and after the dual-direction absorption spectra of the sample. Such measurements do not require sample preparation and do not damage the sample being measured. A NIR measurement requires a stable light source, a means of selecting the desired wavelengths from the light source, an enhanced silicon detector to measure the light before and after it illuminates the product and a built-in microprocessor system to convert the detector output to octane rating.

    The ZX101 is the only NIR analyser which combines all these features with direct measurement, improved portability, user-friendliness and low cost.

    All major fuels company are equipped with the ZX101 (ESSO/EXXON, MOBIL, SHELL, TOTAL, NESTE/FORTUM, PLOCK REFINERY, IMPERIAL OIL, PETROCANADA, CALTEX, AMOCO, ASHLAND PETROLEUM, CLARK OIL, DIAMOND, MARATHON OIL, SUN, etc.).
