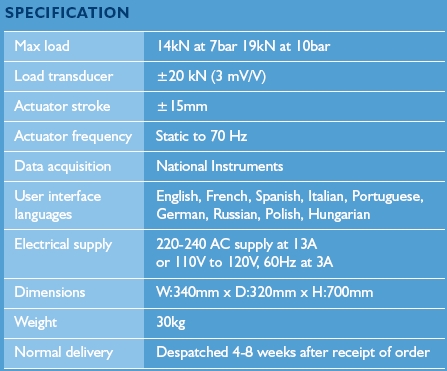

TEST MODULES FOR TESTING SYSTEM

CRT-IT-SH Indirect tensile module with full instructions and comprising: For measuring resilient modulus (indirect tensile stiffness modulus) of 100mm and 1 150mm diameter asphalt concrete and cement stabilised specimens

sub-frame

alignment jig

loading strips

LVDT transducer yokes and transducer adjusters

two 0.1mm range LVDT displacement transducers

steel check ring for checking IT transducer accuracy

Dimensions:- 40 x 30 x 40cms Weight:- 15kgs

CRT-PD-SH Permanent deformation module with full instructions and comprising: For uniaxial creep and dynamic creep tests on 1 100mm and 150mm diameter asphalt concrete Specimens.

hardened and ground platens (1 100mm diameter)

hardened and ground platens 150mm diameter)

LVDT displacement transducer clamps and slide rods

two 10,Omm range LVDT displacement transducers

Dimensions:- 40 x 30 x 20cms Weight:- 20kgs

CRT-4PT-BFAT-SHBeam fatigue module with full instructions and comprising..
For controlled strain or Controlled stress 4 point bending beam fatigue tests

cradle assembly and clamps for 50.8 x 63.5 x 3 1 8mm specimens

dummy specimen

two 5.Omm range LVDT displacement transducers

Nota:
1. The actuator will operate at frequencies up to 100 Hz, but at this frequency load is low.
2. The CRT-NU14 system software runs under Windows 2000/NT/XP.
3. The test methods listed require additional subframes



CRT-100UBTRIAX-SH Unbound materials triaxial test module with full instructions and comprising:

triaxial cell for 10Omm dia. x 200mm high samples with axial and radial deformation and,cell pressure measurement system, sample caps with porous disc interfaces

cell pressurisation system including regulator, filters and pressure gauge

split mould (10O mm ID) for specimen preparation

set of 100 neoprene membranes for 100mm dia

PVC dummy specimen 10Omm dia. x 200mm high

Compressor, 4cfm at 10bar

Note:As there arc, a number variations of equipment depending upon the type of material to be tested only the basic equipment for unstabilised, non-cohesive unbound materials is included.

Dimensions:- 50 x 60 x 70cms Weight:- 50kgs

CRT-TCC
Environmental chamber to enclose asphaltic concrete material test modules with split chamber system for quick removal when testing non temperature dependent materials. 10�C to +60�C �0.5�C accuracy.

Dimensions:- 80 x 80 x 150cms Weight:- 120kgs

*Note: With all servo-systems (hydraulic or pneumatic) the applied load range decreases as frequency decreases. This depends on a number of factors including the test configuration and the nature of the material being tested.
