MULTIFLASH Automatic PMCC, Abel, Tag, Cleveland & Setaflash Flash Point Tester



ASTM D3278; ASTM3828; IP 303 Part 1 and 2; ISO 3679; ISO 3680; BS 6664 Part 3 and 4; BS 3900 Part A13; BS EN 456; ASTM E502; UN Class 3 Non-viscous Flammable Liquids; CHIPS Regulations; Classification of Dangerous Goods for Carriage: Viscous and non-viscous liquids; EPA 1020 A and B; IP / ASTM Automatic Small Scale draft method

The Multiflash-SS fully automates and conforms precisely to national and international Small Scale Closed Cup standard test methods.

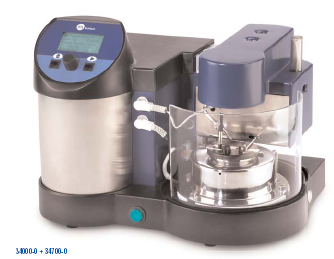

The instrument consists of a 34000-0 MultiFlash Universal Base Unit and a 34700-0 SS Closed Cup module, one of a range of interchangeable flash point tester modules.

  • Highly automated
  • Unrivalled versatility and ease of use
  • Exactly conforms to the requirement of test method
  • Gas or electric ignition
  • Centigrade or Fahrenheit temperature display
  • Reliable operation and low maintenance
  • Advanced features
  • Setalert compatible
  • Universal intelligent base unit
  • SUPPLIED WITH: 2ml syringe, mains lead and instruction manual

    34700-0 Small Scale Closed Cup Module
    The module comprises a heated cup and lid, and a DIPS pod (Dipping, Ignition, Pilot, Stirrer) containing a mechanism for dipping the ignitor into the sample, a combined gas and electric ignitor, and an electric pilot for the ignitor. The DIPS pod for this specific application does not utilise a stirrer.

    34000-0 Multiflash Universal Base Unit The intelligent base unit is pre-programmed to recognise which module type is fitted, and automatically sets up the relevant test parameters and calibration data. Fitting or removal of a module is simple and completed in a few minutes.
