MULTIFLASH Automatic PMCC, Abel, Tag, Cleveland & Setaflash Flash Point Tester

MULTIFLASH

CLEVELAND OPEN CUP TESTER

ASTM D92; IP 36; ISO 2592; EN 22592; BS 2000 Part 36 and 403; DIN 51376; T60-118; JIS K2265; AASHTO T48

  • Highly automated
  • Unrivalled versatility and ease of use
  • Exactly conforms to the requirement of test method
  • Gas or electric ignition
  • Centigrade or Fahrenheit temperature display
  • Reliable operation and low maintenance
  • Advanced features
  • Setalert compatible
  • Universal intelligent base unit
  • The Multiflash-Cleveland fully automates and conforms precisely to national and international Cleveland Open Cup test methods.

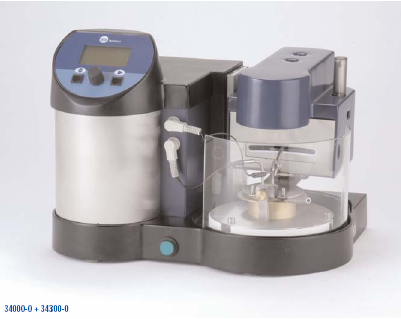

    The instrument consists of a 34000-0 MultiFlash Universal Base Unit and a 34300-0 Cleveland Open Cup module, one of a range of interchangeable flash point tester modules.

    SUPPLIED WITH: mains lead and instruction manual

    34300-0 Cleveland Open Cup Module

    The module comprises a heated cup and lid, and a DIPS pod (Dipping, Ignition, Pilot, Stirrer) containing a mechanism for dipping the ignitor into the sample, a combined gas and electric ignitor, and an electric pilot for the ignitor. The DIPS pod for this specific application does not utilise a stirrer.

    34000-0 Multiflash Universal Base Unit

    The intelligent base unit is pre-programmed to recognise which module type is fitted, and automatically sets up the relevant test parameters and calibration data. Fitting or removal of a module is simple and completed in a few minutes.

    Multiflash
