MULTIFLASH Automatic PMCC, Abel, Tag, Cleveland & Setaflash Flash Point Tester



IP 170; ISO 13736; EN 13736; BS 2000 Part 170; IP 304 Part 1 and 2; IP 491; IP 492; ISO 1516; ISO 1523; BS3900 Part A8 and A9; BS 6664 Part 1 and 2; D3941

  • Highly automated
  • Unrivalled versatility and ease of use
  • Exactly conforms to the requirement of test method
  • Gas or electric ignition
  • Centigrade or Fahrenheit temperature display
  • Reliable operation and low maintenance
  • Advanced features
  • Setalert compatible
  • Universal intelligent base unit
  • The Multiflash-Abel fully automates and conforms precisely to national and international Abel Closed Cup and Equilibrium test methods.

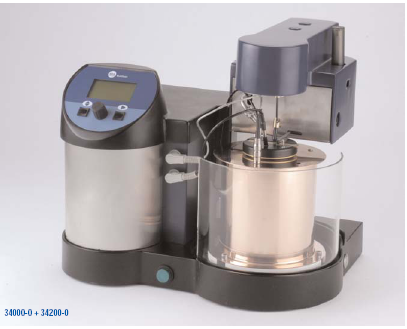

    The instrument consists of a 34000-0 MultiFlash Universal Base Unit and a 34200-0 Abel Closed Cup module, one of a range of interchangeable flash point tester modules.

    SUPPLIED WITH: mains lead and instruction manual

    34200-0 Abel Closed Cup Module

    The module comprises a heated cup and lid, and a DIPS pod (Dipping, Ignition, Pilot, Stirrer) containing a mechanism for dipping the ignitor into the sample, a combined gas and electric ignitor, an electric pilot for the ignitor, and a stirrer.

    34000-0 Multiflash Universal Base Unit

    The intelligent base unit is pre-programmed to recognise which module type is fitted, and automatically sets up the relevant test parameters and calibration data. Fitting or removal of a module is simple and completed in a few minutes.
