This test method covers the detection of the corrosiveness to copper of aviation gasoline, aviation turbine fuel, automotive gasoline, natural gasoline or other hydrocarbons having a Reid vapor pressure no greater than 18 psi.

REF. 941220

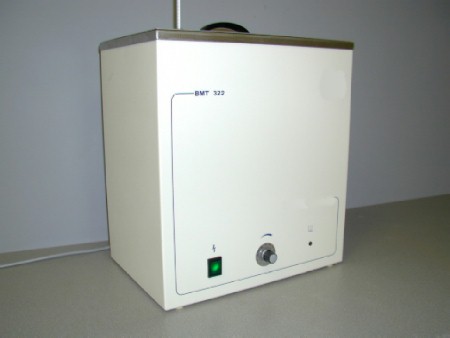

Constant temperature test bath with plain cover and drain cock, controlled by electronic thermostat, Pt 100 sensor and led heating control (max 100�C).

NECESSARY ACCESSORIES FOR ASTM D 130
12780 Test tube 25x150mm
99486 Multistrip polishing vise
99493 Copper strip corrosion test standard
941485 Copper strip (pack of 24)
941491 Flat glass test tube
941492 Test cylinder
994871 Silicon carbide paper 240 grits (pack of 10)
9413109 Support to hold 9 stainless steel vessel
9413125 Support to hold 25 test tubes
9911499 ASTM thermometer 12C
9922505 Silicon carbide pow der 150 mesh (1 kg)

REFERENCE FLUID (on request)

SPARE PARTS (2 years basis)
941491 Flat glass test tube
941492 Test cylinder
9414920 O'ring seals (pack of 10)
9922505 Silicon carbide pow der 150 mesh (1 kg)
12780 Test tube 25x150mm
9417900 Pt 100 probe (30x6 mm)
9412209 Heating element (1500 W)

NECESSARY ACCESSORIES FOR IP 227
941224 Cover including 3 test tubes (amber)
994851 Silver strip assaying at 99,9%
994931 Silver strip corrosion standard
9414883 Craddle (amber glass)
9911499 ASTM thermometer 12C
99486 Multistrip polishing vise
9414881 Test tube (amber glass)
9414882 Condenser (amber glass)
9922505 Silicon carbide pow der 150 mesh (1 kg)
994871 Silicon carbide paper 240 grits (pack of 10)

SPARE PARTS (2 years basis)
994851 Silver strip assaying at 99,9%
9414883 Craddle (amber glass)
9911499 ASTM thermometer 12C
9414881 Test tube (amber glass)
9414882 Condenser (amber glass)
9417900 Pt 100 probe (30x6 mm)
9412209 Heating element (1500 W)
