DENSITY/SPECIFIC GRAVITY/CONCENTRATION METER  DMA 4500 TRACEABLE TO ASTM D287/ 1070/ 1298/ 4052 / 5002 ISO 3675

DENSITY/SPECIFIC GRAVITY/CONCENTRATION METER DMA 4500

TRACEABLE TO ASTM D287/ 1070/ 1298/ 4052 / 5002 ISO 3675

DMA 4500 Density Meter

Few instruments have the reputation for accuracy, durability, and reliability associated with the legendary digital density meters .Now our newest model, the DMA 4500, continues that proud tradition

Performance Driven Technology

There is no room for compromise in instruments that must be ready to perform at all times. And so it is with the DMA 4500. Derived from the advanced DMA 5000 operating platform, the DMA 4500 has the most exacting temperature control and measuring systems available in its class.

Reference oscillator built into the measuring cell

  • Eliminates long term drift
  • One adjustment at 20 �C is sufficient for the whole measuring temperature range
  • Faster sample throughput
  • All new, easy to use (really!) software

  • All options are menu-driven and shown on the display
  • You define what is calculated, displayed and printed by selecting the options right for you
  • On-line help available at the touch of a button
  • Accepts a standard IBM keyboard for comfortable operation
  • Conversion tables are permanently stored in memory - no need for additional programming
  • One button operation allows quick switching between measuring techniques
  • Memory for 100 measuring results
  • Password protection available
  • In-cell temperature measurement by high-precision platinum thermometer

  • Most accurate temperature sensor available
  • Traceable to several international standards
  • Can be adjusted and calibrated
  • Full range viscosity correction

  • For the first time, all viscosity related errors inherent to all types of oscillating U-tube density meters are automatically eliminated
  • Viscosity correction covers all sample viscosities
  • No need for viscous standards, such as sucrose standards
  • Measurement can be displayed with and without viscosity correction at the same time so results can be compared to older models of density meters
  • Built for Dependability

    Like all the previous 4 place density meters , the DMA 4500 is designed to perform reliably in the most demanding environments. The spillproof front panel and housing make sure that accidental spills stay on the outside. We have even designed the DMA 4500 to minimize condensation on the instrument when the measuring temperature is below the dew point.

    Every feature is specifically aimed at keeping your instrument accurate and reliable, year after year.

    Designed With You in Mind ...

    The DMA 4500 is the new laboratory workhorse. Built for round-the-clock operation, it will measure your samples quickly, accurately, easily ..... day after day, year after year. And everything is so easy to do. An air and water adjustment at 20 �C lets you measure at any temperature throughout the entire 0 to 90 �C range - just pick a temperature and go. There are 10 built-in measuring techniques to handle the most common applications. Use them as they are or customize them to match your specific needs .....

    Collect

    is an easy-to-use software program that captures readings from your meter and sends them transparently to your application or directly to a file via the RS232 interface.

    Any program that allows you to manually enter data can receive data directly from Collect. Your application accepts the data as if it were manually entered from the keyboard. Collect was designed for those who simply want to turn on their computer and begin collecting data. It is extremely easy to use and will save countless hours of tedious data entry.

    Applications

  • Soft drinks
  • Determination of sugar content
  • Petroleum
  • Determination of API gravities
  • Quality control of fuels and additives
  • Chemical industry
  • Concentration determination of all acids, bases and other solutions
  • Research into polymer solutions
  • Dilution series
  • Breweries and alcoholic beverages
  • Determination of alcohol, extract and original extract content
  • Pharmaceutical industry
  • Determination of the specific gravities of medical preparations
  • Quality control of infusion solutions
  • Quality control
  • Monitor batch to batch consistency
  • Ensure proper blending ratios

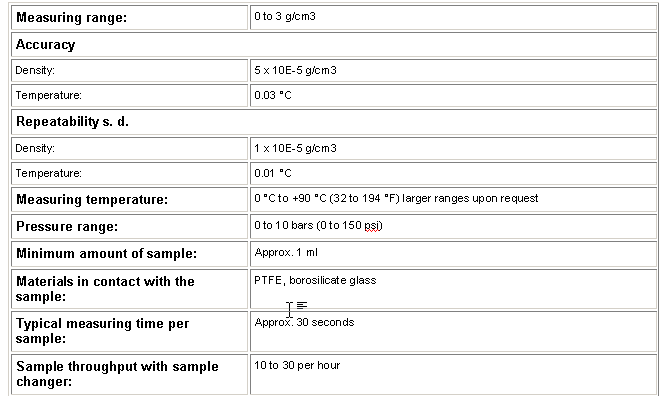

  • Specification
