DEFINITION

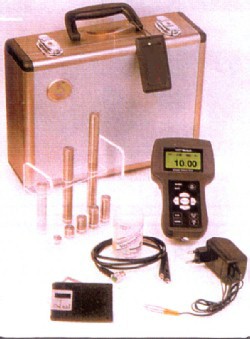

The Ultrasonic Thickness Gauge WT-3XX (Helios Series) is the high grade model to be precisely able to measure the thickness of construction or goods that are difficult or impossible to measure using standard method with 0.01 resolution. This gauge has the ability to calibrate to a variety of different materials including steel, plastic (PVC, PE, etc.), rubber, glass, and composites in just seconds using a calibration option. It also can storage the measured data (up to 1,200) with each label and upload to a computer for printing the data.

WT-310 Thickness Gauges With Dual Element Transducers

WT-310 Thickness Gauges make very precise thickness measurements on a wide variety of materials such as steel, plastic, glass, rubber, ceramics, and composites. they employ dual element contact transducers to measure parts of many shapes and sizes: turbine blades, steel coils, plastic bottles, cast parts, glass containers, fiberglass hulls, composite panels, rubber hoses, etc.

WT-310 Thickness Gauges also measure the remaining wall thickness of parts that are subject to corrosion or erosion. They generally employ Dual Element Transducers which have separate pulse and receiver transducer element to provide better sensitivity on rough or corroded parts such as pipe lines, storage tanks, pressure vessels, hulls, and steam lines


APPLICATIONS

  • Corrosion and Pitting
  • Tube and Pipe
  • Tanks
  • Boilers
  • Glass
  • Poly Ethylene
  • PVC
  • Copper Pipe

  • SPECIFICATION

    Test Range

    Test Range

    0.63 � 500mm(steel)

    Minimum surface radius:



    Convex-25.4mm



    Concave 76.2mm





    Velocity

    500 � 1,500 m/s

    Minimum sample diameter:

    12.7mm

    Display

    5 digit (graphic LCD)



    Resolution

    0.01mm



    Mode

    Differential mode



    Display the difference between reference data and measured data

    Alarm mode

    Alarm for measured data out of reference

    Aberration range determination

    + aberration, - aberration, � aberration

    LED alarm indicator

    Buzzer

    Function

    Auto calibration (PRBO)

    Test delay compensation



    V-path compensation

    Vertical path compensation



    Back-light on/off

    Auto or manual back-light on/off



    Scan test

    Scan test for measuring minimum thickness



    Custom set up

    Store up to 10 custom set-ups



    Auto data recording

    Automatic data recording with ID increment



    Data logging

    Up to 1200 data recording with each label



    Data transfer

    RS232 data transfer to PC documentation S/W (WT-310S)

    Physical

    Battery

    One Li-ion battery (3.6V)

    Battery lifetime

    About 200 hours

    Operation temperature

    -10�C � 5-�C

    Dimension

    H180mm x W100mm x D50mm

    Weight

    300g
