WATER STILL RANGE


This range of water stills provide all the answers to pure water requirements. High quality glassware, advanced design together with minimum maintenance combine to provide a product that will give relaible service for years.

All stills are protected by safety features giving failsafe operation without supervision. Alternative low cost metal heaters or high quality silica sheathed elements are available. Cabinet stills can either be bench mounted, wall mounted or used as an island with the 25 litre reservoir. Continental 110volt metal heaters can be supplied

AQUAMATIC AND CABINET WATER STILLS

  • Visual flow control valve sets water input for maximum efficiency and cuts power if water supply fails.
  • Solonoid valve shuts off water supply to still if electrical power supply fails.
  • Funnel inlet for descaling and flushing boiler without dismantling apparatus.
  • Constant level device gives efficient boiler operation and protects against overflowing.
  • Screwthread connectors for easy assembly, maintenance and leakfree operation.
  • Indicator gives visual warning when reservoir is full cutting out all power and water to the still.
  • Double coil condenser for maximum output with low temperature distillate.
  • Electrical specification meets B.S. and international standards.
  • Pressure switch shuts off water supply and power when reservoir is full. Allows any type of reservoir to be used.
  • Stove enamelled casing incorporates hinged perspex front cover for easy access.

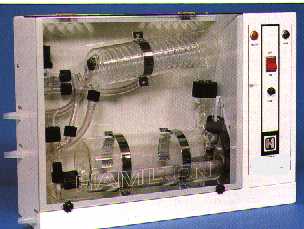

Cabinet Water Still 4 litres/hour

Cabinet Water Still - 4 litre/hour

(Cat No. WSC/4 - Fitted with metal heater)
Cat No. WSC/4S - Fitted with silica heater)

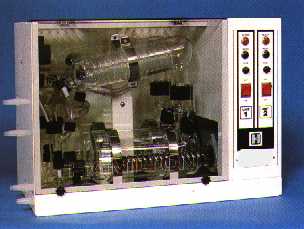

Cabinet Water Still 8 litres/hour

Cabinet Water Still - 8 litre/hour

(Cat No. WSC/8 - Fitted with metal heater)
Cat No. WSC/8S - Fitted with silica heater)

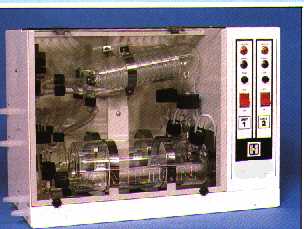

Cabinet Water Still Double Distillation 4 litres/hour

Cabinet Water Still - Double Distillation - 4 litre/hour

(Cat No. WSC/4D - Output approximately 4 litres/hour of high purity distillate. 4 silica heaters)
Aquamatic Water Still 4 litres/hour

Aquamatic Water Still - 4 litre/hour

(Cat No. WSC/4 - Fitted with metal heater)
Cat No. WSC/4S - Fitted with silica heater)
Aquamatic Water Still 8 litres/hour

Aquamatic Water Still - 8 litre/hour

(Cat No. WSC/8 - Fitted with metal heater)
Cat No. WSC/8S - Fitted with silica heater)
Aquamatic Water Still Double Distillation 4 litres/hour

Aquamatic Water Still - Double Distillation - 4 litre/hour

(Cat No. AWC/4D - Output approximately 4 litres/hour of high purity distillate. 4 silica heaters)
Economy Water Still 4 litres/hour

Economy Water Still - 4 litre/hour

(Cat No. WSE/4S - Fitted with silica heater still provides the same performance as the cabinet stills. The still features a high quality boiler and condenser distillation unit mounted on a stove enamelled metal chassis with all electronics in a metal housing.)
Budget Water Still 4 litres/hour

Budget Water Still - 4 litre/hour

(Cat No. WSB/4 - Fitted with metal heater - Budget water stills have been produced mainly to meet educational requirements. The still is a basic low cost unit that will give 4 litres/hour of distillate but still retains safety thermostatic cut out and high quality glassware.)
Cabinet Water Still 4 litres/hour

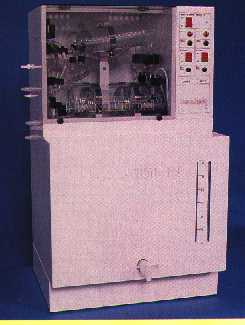

Complete Water Still and Reservoir Unit

(Cat No. RS/25 - All Cabinet Water Stills can be supplied as a complete unit mounted on these 25 litre reservoirs - Add prefix RS/25 to catalogue number if required. Existing customers can have their stills fitted to the reservoirs but must be returned to the factory. )
Cat No. WSC/4S - Fitted with silica heater)

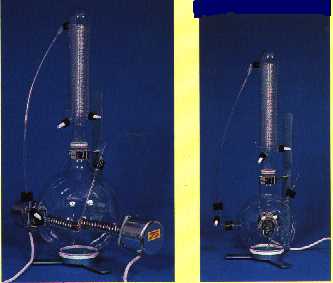

Vertical Water Stills

Vertical Water Stills

(Cat No. WSS/4)
Cat No. WSS/8)
(These traditional stills have been produced for many years aand have proved to give reliable performance with a low outlay> The double spiral condenser is mounted on a spherical boiling chamber with a flexible joint. Water flow is controlled by a constant level device. Heaters feature a built in thermostatic cut outs> A sturdy metal bracket is provided enabling stills to be either bench or wall mounted.)

Water Still Selection Table



Catalogue No.

output

Double

Heater Type



Cabinet

Pyrogen

Flow

control

Borosilicate

Automatic



4 L/hr

8 L/hr

distilled

Metal

Silica



model

free

valve

glass

operation

WSE/4

0



0



0



0

0



WSB/4

0



0



0



WSC/4

0



0



0



0

0



WSC/4S

0



0



0

0



0

0



WSC/8



0



0



0



0

0



WSC/8s



0



0



0

0



0

0



WSC/4D

0



0



0



1



0

0



AWC/4

0



0



0



0

0



0

AWC/4S

0



0



0



0

0



0

AWC/8



0



0



0



0

0



0

AWC/8S



0



0



0



0

0



0

. AWC/4D. 0 0 0

Technical Specification



0

0

0

0









output



4 litres/hr

4 litres/hr

4 litres/hr D.D.

8 litres/hr



8 litres/hr

Heaters



metal

Silica

silica



metal



- Silica

Wattage



1 x 3Kw

2 x 1.5 Kw

4 x 1.5 Kw



2x 3Kw



4 x 1.5 Kw

Power



220/24Ov

220/24Ov

220/24Ov



220/24Ov



220/24Ov

Fuse



13 amps

13 amps

2 x 13 amps



2 x 13 amps



2 x 13 amps

Minimum Supply Pressure



5 psi

5 psi

5 psi



5 psi



5 psi

Dimensions (h x w x d) mm



400 x 590 x 240

400 x 590 x 240

400 x 590 x 340

400 x 590 x 340



400 x 590 x 340

Incl. Reservoir (h x w x d) mm



940 x 590 x 530

940 x 590 x 530

940 x 590 x 530

940 x 590 x 530



940 x 590 x 530

Nett Weight (kg)



12

12

20



20



20

Incl. Reservoir (kg)



32

32

40



40



40

pH



5.5-6.5

5.5-6.5

55-6.5



55-6.5



55-6.5

Conductivity uS/cm



< 2.5

< 2.5

< 1.5



< 2.5



< 2.5

Resistivity megohm-cm



0.4

0.4

0.66



0.4



0.4

Temperature



< 35 *C

< 35 'C

< 35 'C



< 35 'C



< 35 *C
