LOW TEMPERATURE BATH CIRCULATOR

LOW TEMPERATURE BATH CIRCULATOR

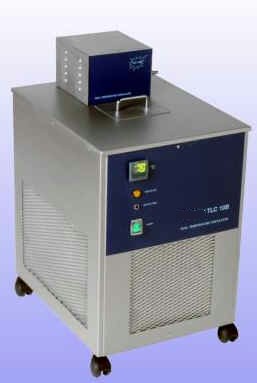

Model TLC10B

  This type of cooling circulator is mostly used for replacing tapwater used for cooling purposes in laboratory equipment or processes. The bath contence is 9 litres

Control mechanism
The used cooling system is ozone friendly, so it doesn't contain any CFK/HCFK gas With the compressor running continuously, the fluid temperature is regulated through an electronic controlled heater.

Span
The TLC10b offers following working range:
-45 to +20�C / -49 .. 68�F

The setpoint can be set in steps of 0,1�. The overall system accuracy is better than �0,1�K. Standard available in �C, on request in �F.

Pump
A pressure pump provides circulation in the bath or via an external circuit. The pressure of the pump is 300 mBar at 7,5 ltrs per minute.

Safety
The bath conforms CE regulation. It is further equiped with a mechanical adjustable and resettable safety thermostat.

Optional equipment
  • Remote control via RS232
  • Suction/pressure Z pump, for circulation of bath-fluid through open vessels. Not suited for foaming fluids
  • Two way slide valve in combination with the Z pump. Permits circulation via open or closed systems
  • Technical specifications:
    Range -45�C..20�C (-49�F..68�F)
    Reading Standard �C, �F on request
    Used materials inside bath Stainless Steel 304, PTFE
    Setting � [�K] 0,1
    Stability* � [�K] Better than 0,1
    Heating [W] 1500
    Heaters 1
    Bath volume [L] 9
    Pump pressure [mm H2O] 300
    Pump cap. L/min 7,5
    Compressor Hp 1/3
    Heat removal
    [W] @10�C : 680
    [W] @0�C : 560
    [W] @-10�C : 480
    [W] @-20�C : 380
    [W] @-30�C : 265
    [W] @-40�C : 170
    Opening [mm] 100*150
    Depht [mm] 200 x Length [mm] 260 x Width [mm] 550
    Hight [mm] 770 x Weight [Kg] 61,5 x Power [W] 2420

    All models conform CE regulation
